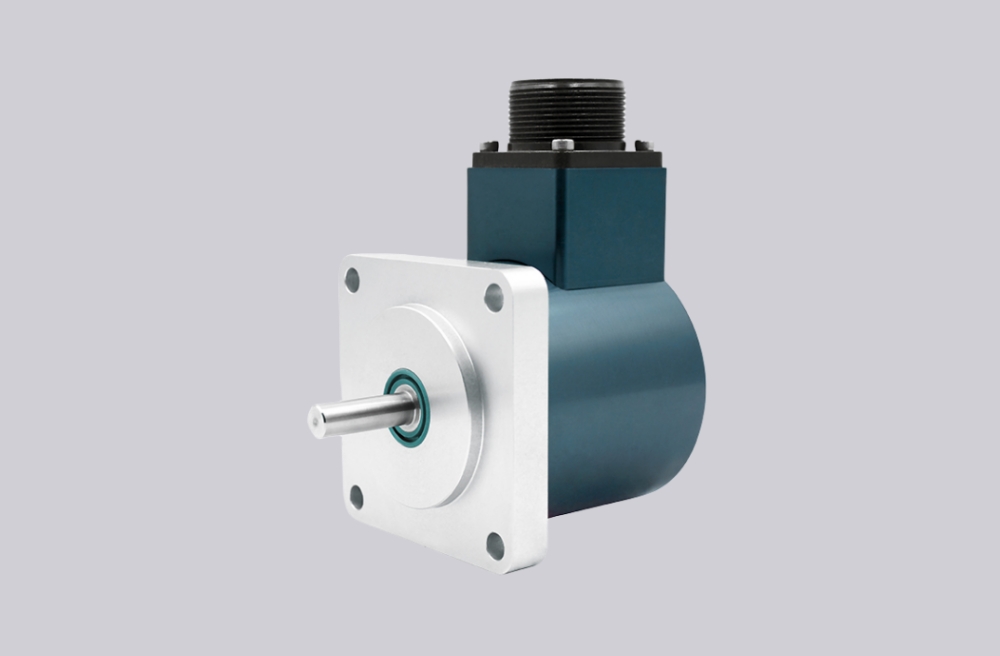

Series 25 Heavy Duty Rugged Housing Shaft Encoders Protected Against Seawater and Tropical Climates
Anodized aluminum or nickel-plated housing Rugged housing with protection class up to IP68
Protects against contamination by dust and liquids. Models for use in hazardous environments are ATEX certified.
Precise photoelectric or magnetic sensing technology, good electromagnetic compatibility
Up to 16384 P/R pulses per revolution
Over-voltage, over-current, surge protection
Rugged metal housing, double bearing design, protection class up to IP68
Reverse short-circuit and short-circuit protection to minimize the impact of installation errors on the encoder.

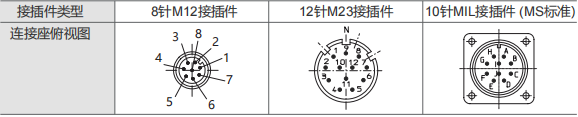

Top view of pin connector block

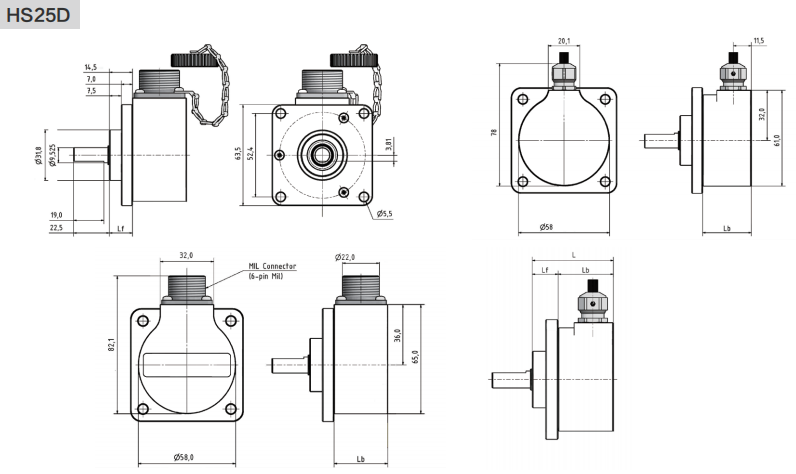

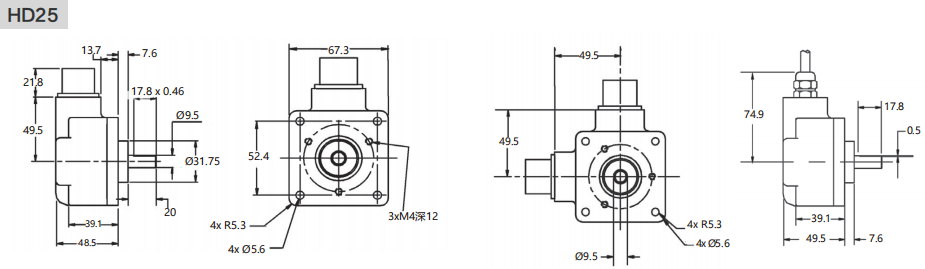

Installation Dimension Drawing

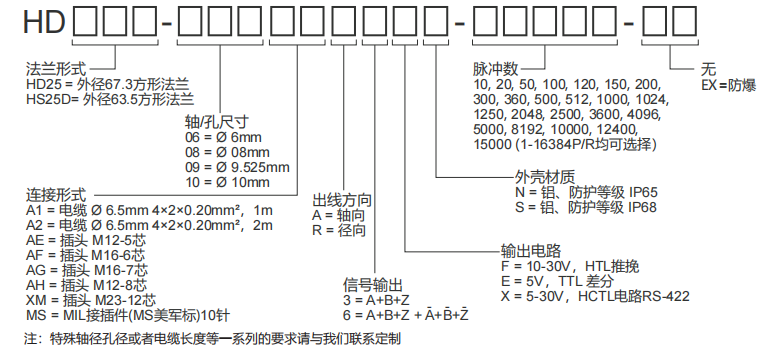

Selection Data Sheet
