Precise photoelectric sensing >>
External dimensions 36 mm solid shaft type, blind hole type encoder
Double bearing design, protection class up to IP67
Pulse count up to 16384P/R
Particularly suitable for narrow space environments, reducing installation space
Reverse short-circuit and short-circuit protection to minimize the impact of installation errors on the encoder.

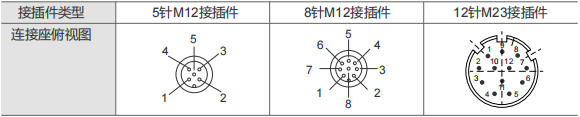

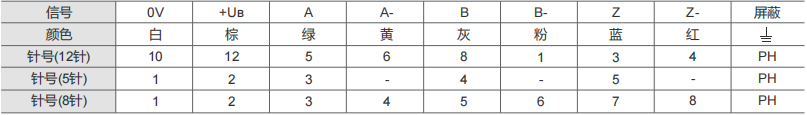

Various plugs can be customized:

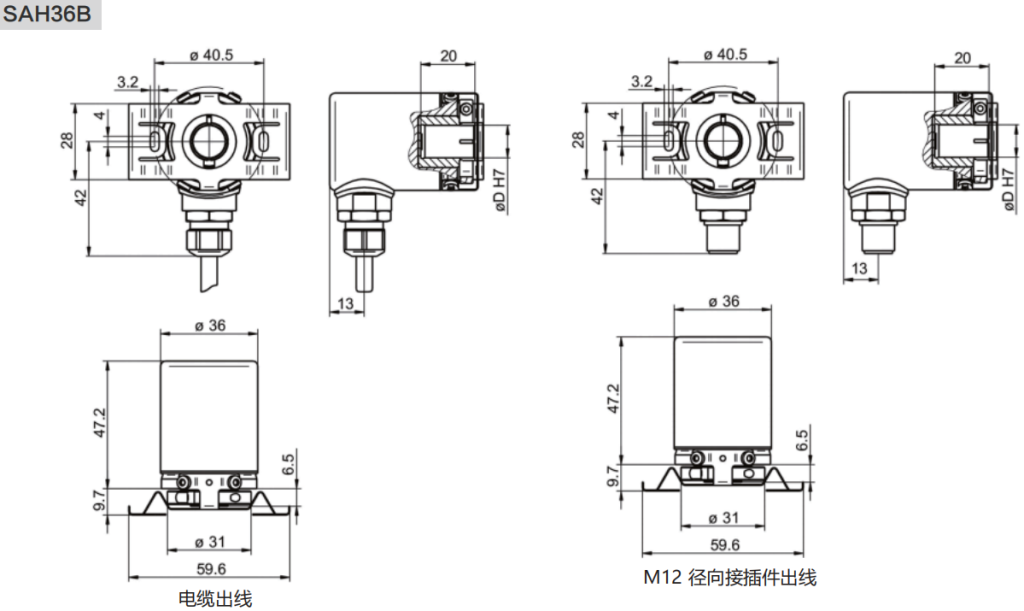

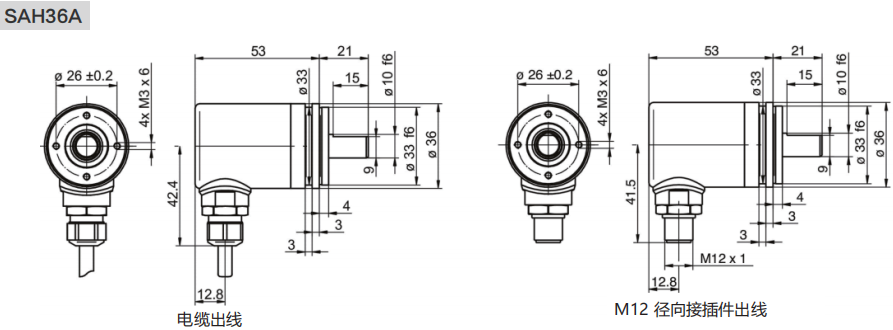

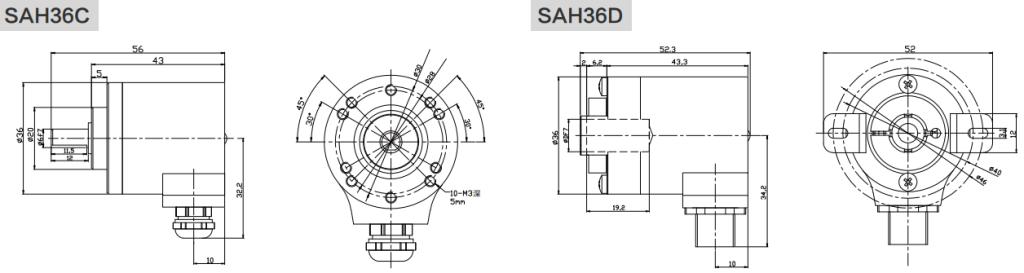

Installation Dimension Drawing:

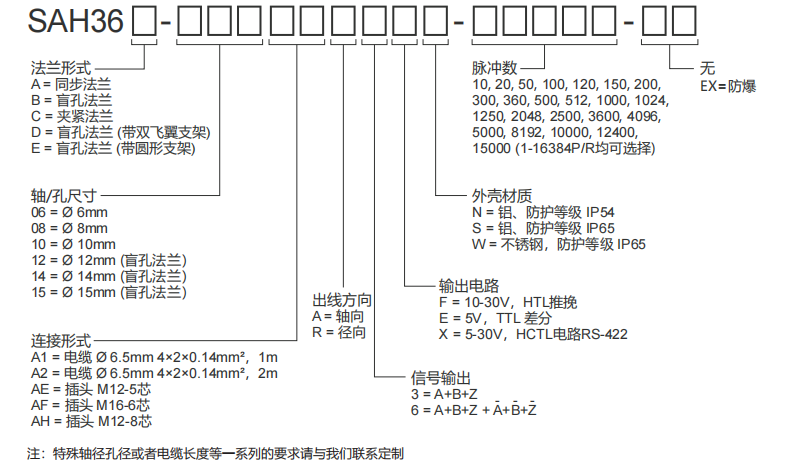

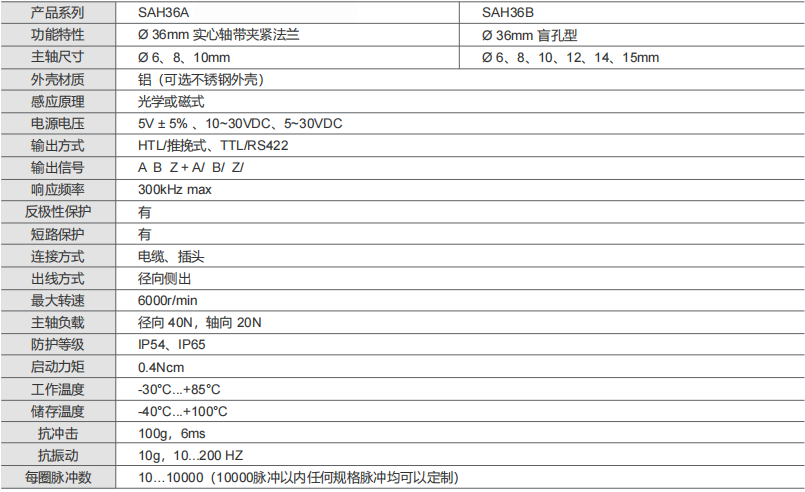

Selection Data Sheet
